Performance & Utility
Special Mission Power – Avcon Special Mission Power solutions drive critical equipment both inside and outside the aircraft. These modifications support heavy-duty equipment configurations by increasing the amount of electrical power available.
- Operator Consoles & Equipment Racks
- Learjet Performance Enhancements
- Cargo Doors
Special Mission Power Alternators & Generators for King Air
The Avcon Supplemental Alternator (approved by STC No. SA03698AT) provides up to 120 amps, 28 VDC to an isolated power bus designed to feed mission equipment.
The belt-driven alternator is installed on the left engine on the available accessory pad. Controls are installed in the cockpit to monitor bus load and voltage.
Range & Weight Increase + Aerodynamic Fins for Learjet
The Avcon R/X Mod includes Aerodynamic Fins (right) as well as tip-tank extensions and a weight increase package.
Range Increase By extending the tip tanks, Avcon R/X mod adds room for approximately 750lbs of additional usable fuel in the aircraft. This provides up to 40 minutes of additional flight time at normal cruise speeds and altitudes.
Weight Increase Package With the aerodynamic enhancements provided by Avcon Fins, maximum weight can be increased (with landing gear install pursuant to AAK 80-3 or equivalent).
Cargo & Utility Doors For King Air
STC SA00415WI
STC No. SA00415WI installs a 13” Air Ambulance / Baggage Door immediately behind the existing airstair door. It expands the total cabin door width to 38 inches, an increase of almost 38%. This is ideal for air-ambulance and cargo applications.
The modification is available for the following King Air models:
- 90: B90, C90, C90A, E90, H90 (T-44A)
- 100: 100, A100 (U-21F), A100A, A100C, B100
- 200: 200, A200 (C-12C), 200T, B200, B200T
- 300: 300, 300LW, B300, 350
Cargo & Airstair Door
Avcon Cargo Door / Airstair Door combinations are used worldwide for air-ambulance and cargo operations.
STC No. SA2192CE installs the King Air Cargo / Airstair Door Combination, manufactured by Beechcraft (the same door offered on new King Air’s at the factory). STC No. SA2192CE is FAA and EASA approved for the King Air 200 series and 300 series.
The 52×52 inch Cargo door is top-hinged and held open with gas springs, providing extensive maneuverability that assists heavy operations such as loading freight from forklifts or moving stretchers and equipment into or out of the cabin.
The airstair door is fitted inside the cargo door, and can be opened while the cargo door is closed – allowing easy adaptation between freighter and passenger configurations, without compromising the passenger experience.

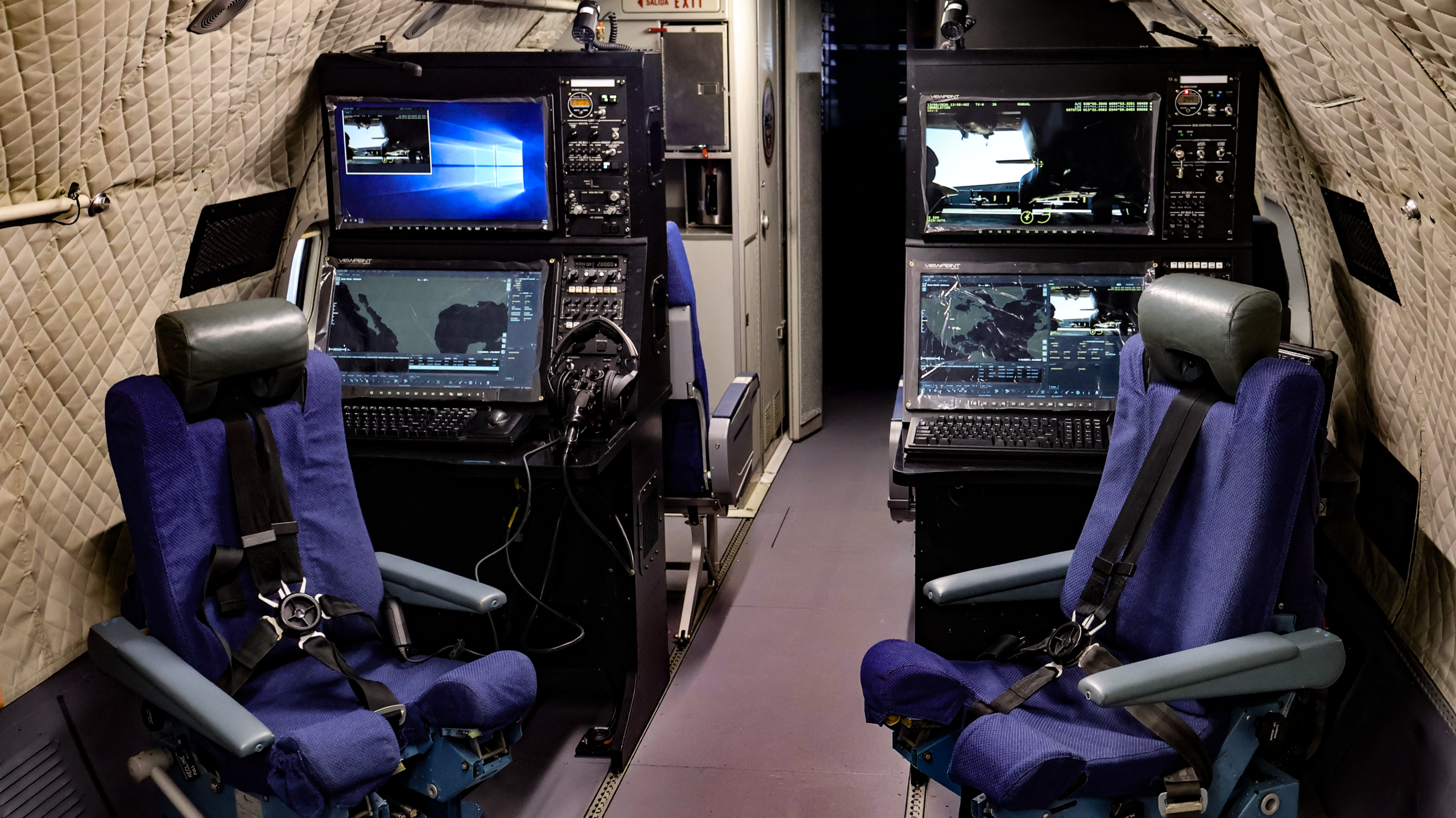

Operator Consoles & Equipment Racks
Custom Solutions for Any Mission
Avcon has produced a variety of workstations, consoles, and equipment racks. Contact our sales team to create a customized solution for your aircraft.
Operator Consoles We design and install custom operator consoles for special mission equipment. Operator consoles are fully integrated into the aircraft’s avionics using custom plumbing, wiring, and power supplies.
Equipment Racks Avcon also offers custom reinforced racks for secure attachment of heavy equipment/payloads. For example, Avcon developed a reinforced baggage subfloor structure to support large equipment racks, approved for a total payload of up to 300 lbs.
